PowerHive
The Energy Coordination and Control Terminal is an intelligent device designed for energy coordination and management. With a built-in Energy Management System (EMS), it enables coordinated management of microgrid components, including PV inverters, power conversion systems (PCS), smart meters, charging stations, smart switches and generator controllers.

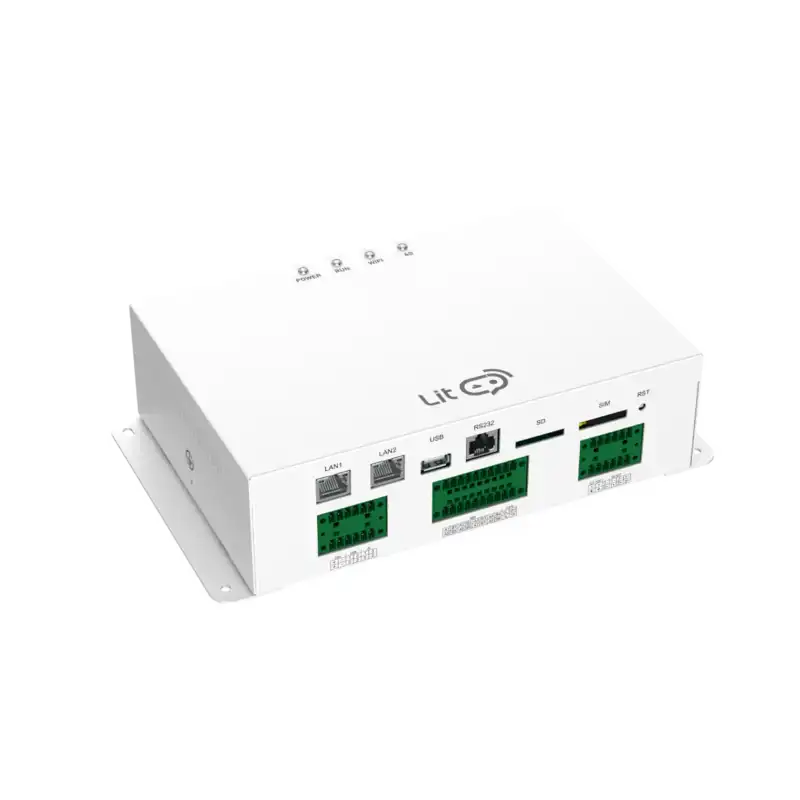

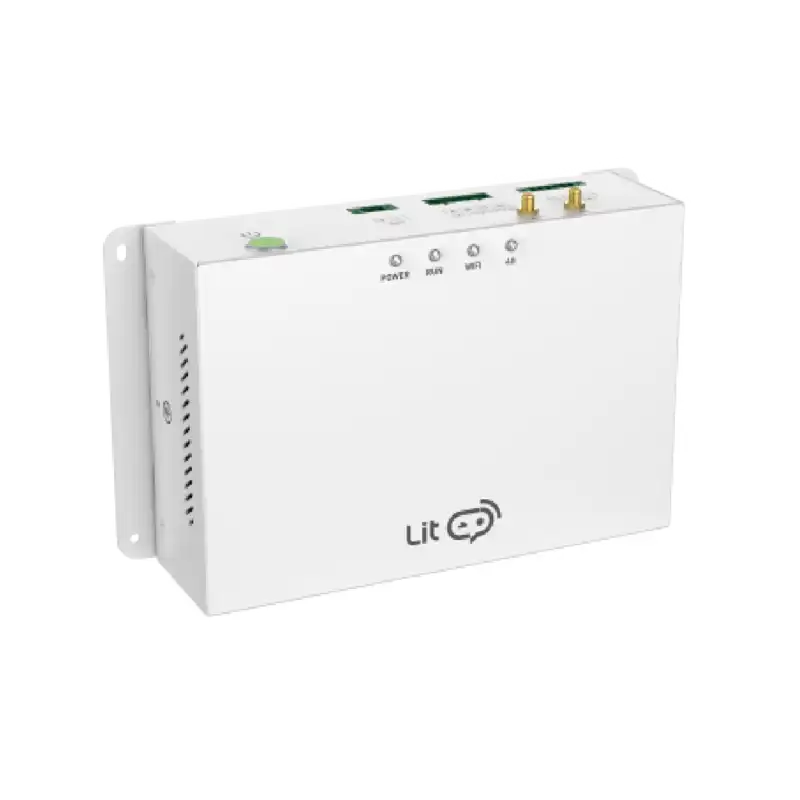

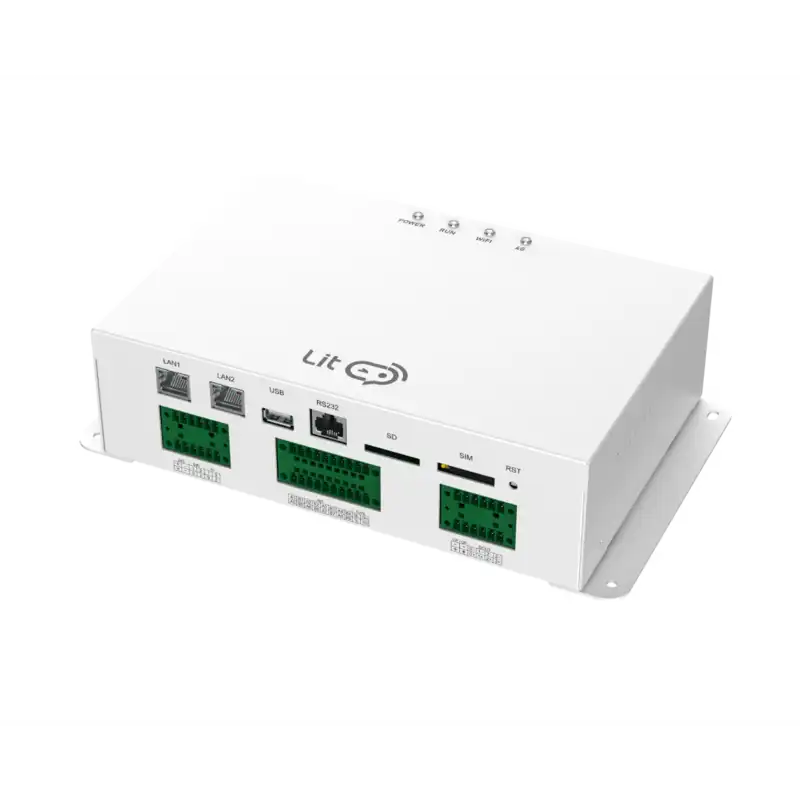

HXEM100
The Energy Coordination and Control Terminal is an intelligent device designed for energy coordination and management. With a built-in Energy Management System (EMS), it enables coordinated management of microgrid components, including PV inverters, power conversion systems (PCS), smart meters, charging stations, smart switches and generator controllers.
Voltage
Rated Input Voltage: DC 12 - 36 VSample Range: AC 3 × 100 V - 3 × 300 V
Current
Sample Range: 5 (6) ACPU & Memory
Cortex-A55, 4-core, 1.6 GHz / DDR4, 1 GBAccuracy
AC Measurement Accuracy: Class 0.5SDC Sampling Accuracy: LSB size: 3 mV
Communication Port
RS485: 8 channels, CAN: 2 channels, RS232: 1 channel, USB: 1 channel (USB 2.0), Ethernet: 2 interfaces (10/100/1000 Mbit/s adaptive)Certification
CE (RED/LVD/EMC), UL, RoHS, WEEE, REACH, Cybersecurity: EN18031Key Features
Connection Diagram
