Single-channel split-type DC meter
Suitable for DC energy metering applications including DC charging stations, solar PV systems and telecommunications base stations.

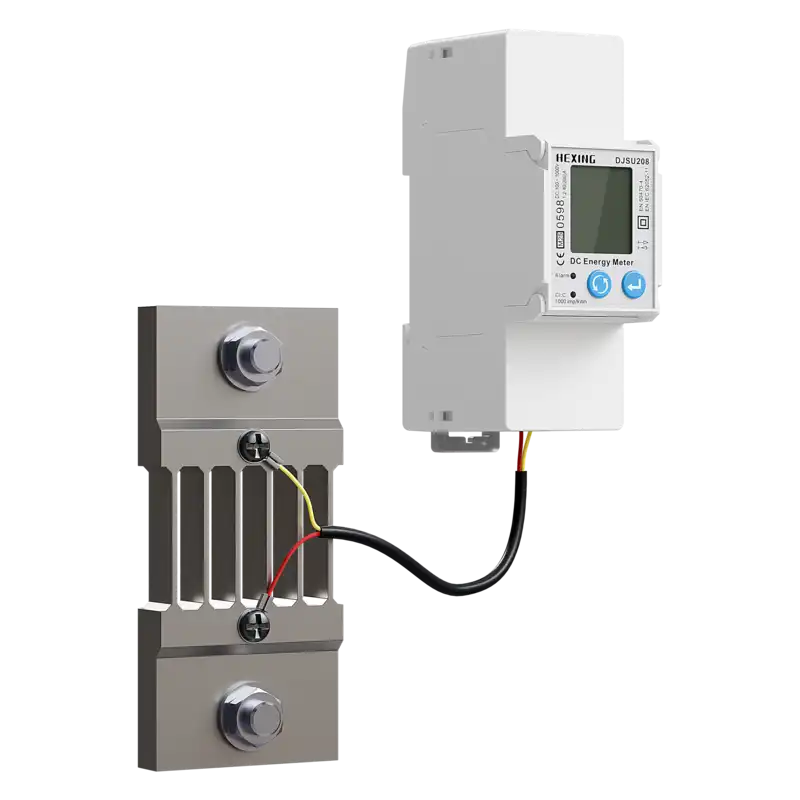

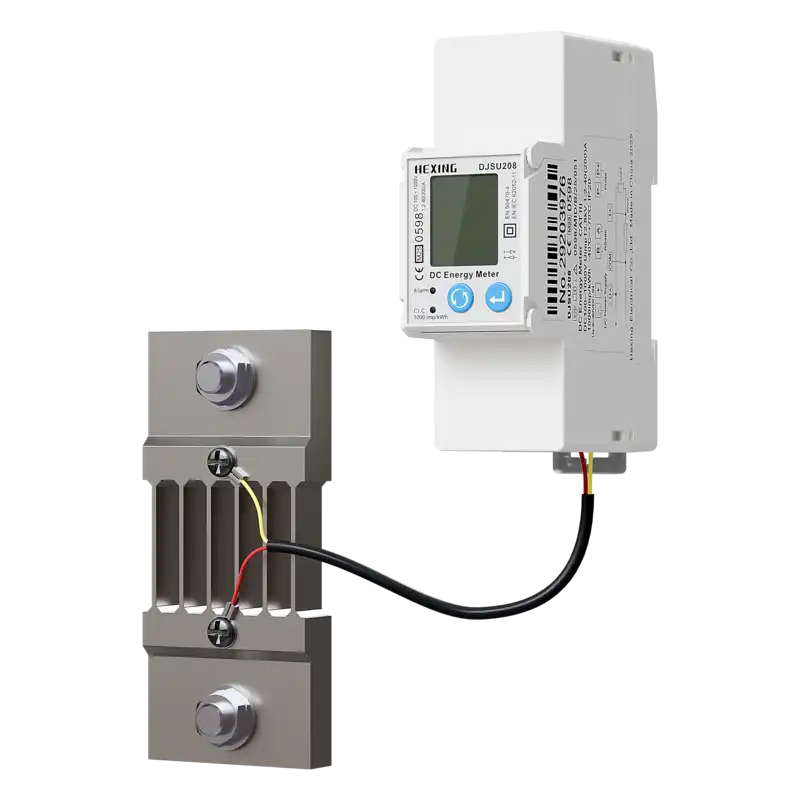

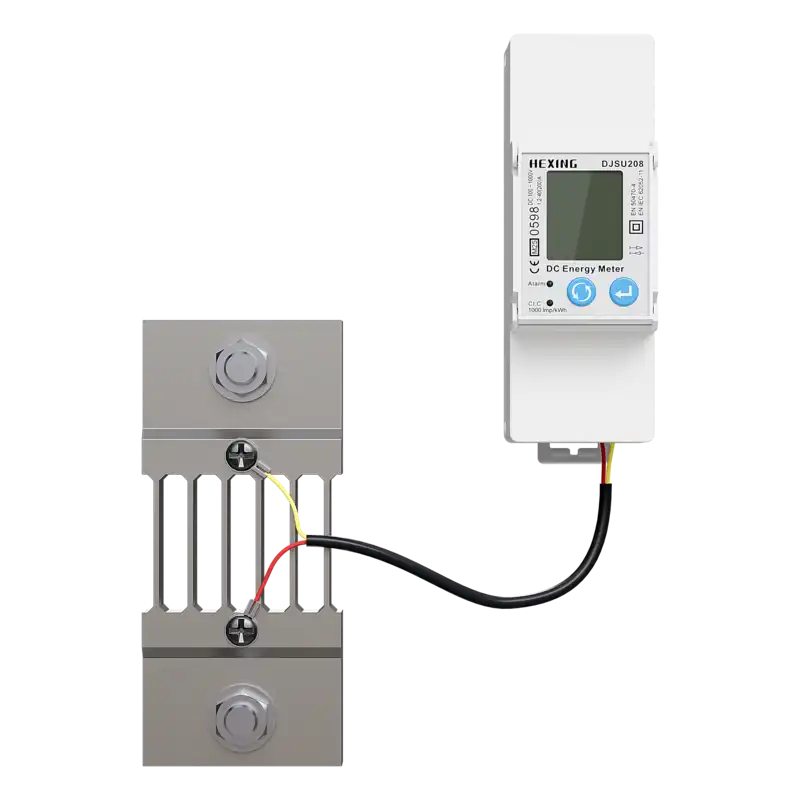

DJSU208(2P)
The DJSU208 single-circuit DC energy meter is designed for applications such as DC distribution panels, DC charging stations and telecommunications base stations. It can measure DC voltage, current, power and forward active energy.
The meter supports both local display and connection to industrial control equipment or computers to form a monitoring and control system. It can also be used as a high-performance automation meter in modern DC power distribution systems for industrial and mining enterprises, residential buildings and building automation applications.
Voltage
Nominal Voltage: 1000 V DCMeasurement Range: 0.1 Un – 1.15 Un
Current
150 / 200 / 300 / 400 / 600 A, configurable (Maximum measurement value: 2000 A; External 75 mV shunt input)Operating Voltage
DC 9–30 VAccuracy
Active energy: Class CCommunication Port
CE, MID, RoHSCertification
CE, MID, RoHSKey Features
Connection Diagram
