Three-phase DIN-rail energy meter (CT connected)

It can be used for energy monitoring in a wide range of applications, including PV energy management, smart buildings and industrial equipment.

DTSU208

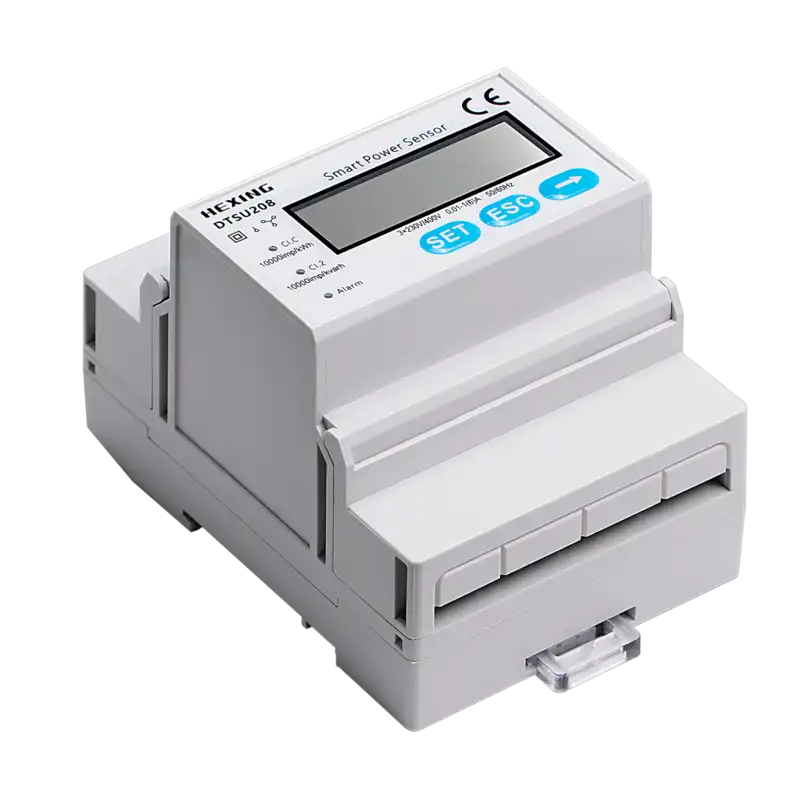

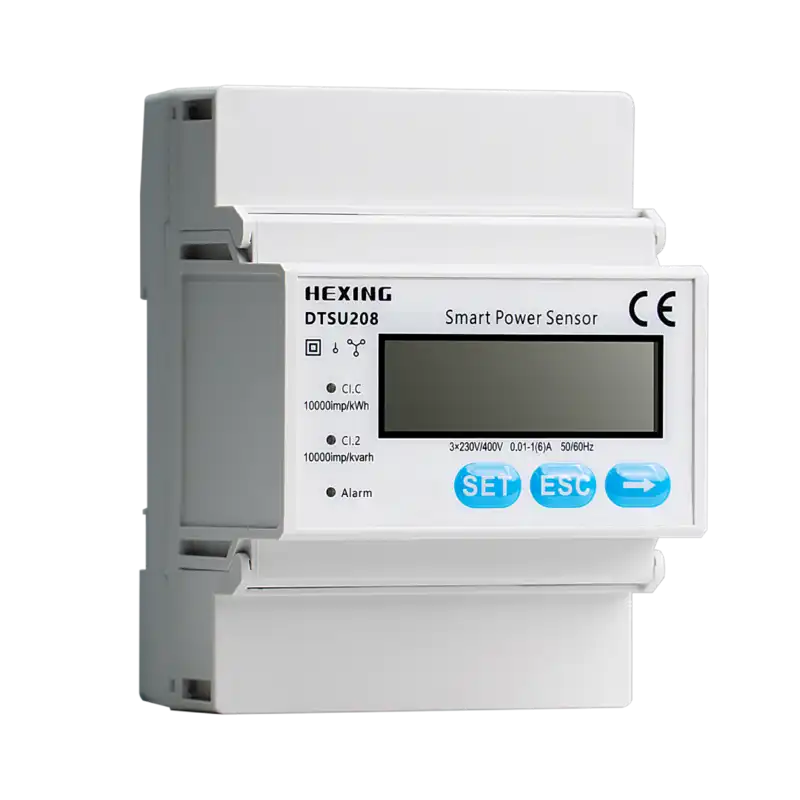

The DTSU208 is a three-phase four-wire electronic DIN-rail energy meter. It is designed to measure electrical parameters including active energy, reactive energy, voltage, current, power, power factor and frequency. Through its RS485 interface, it provides power monitoring data to inverters and other equipment for fast-response control. It supports standard DIN-rail mounting and features a compact size and easy installation.

It is widely used for power data monitoring in distributed PV systems, energy storage systems and other renewable energy applications.

Voltage

Nominal voltage: 3 × 57.7 / 100 V; 3 × 120 / 208 V; 3 × 230 / 400 V; 3 × 240 / 415 V; 3 × 100 V
Operating voltage range: 80% Un – 120% Un

Current

1(6) A

Frequency

50 / 60 Hz

Accuracy

Active energy: Class C or 0.5S;
Reactive energy: Class 2

Communication Port

RS485 / Modbus-RTU

Certification

CE, CPA

Key Features

Data Record

Supports monthly and daily frozen energy data.

Communication Function

RS485 communication supports up to 115200 baud rate.

20 ms Fast Refresh

Real-time electrical data refresh in as fast as 20 ms.

4-Rate Tariffs

Supports four-rate tariff energy recording.

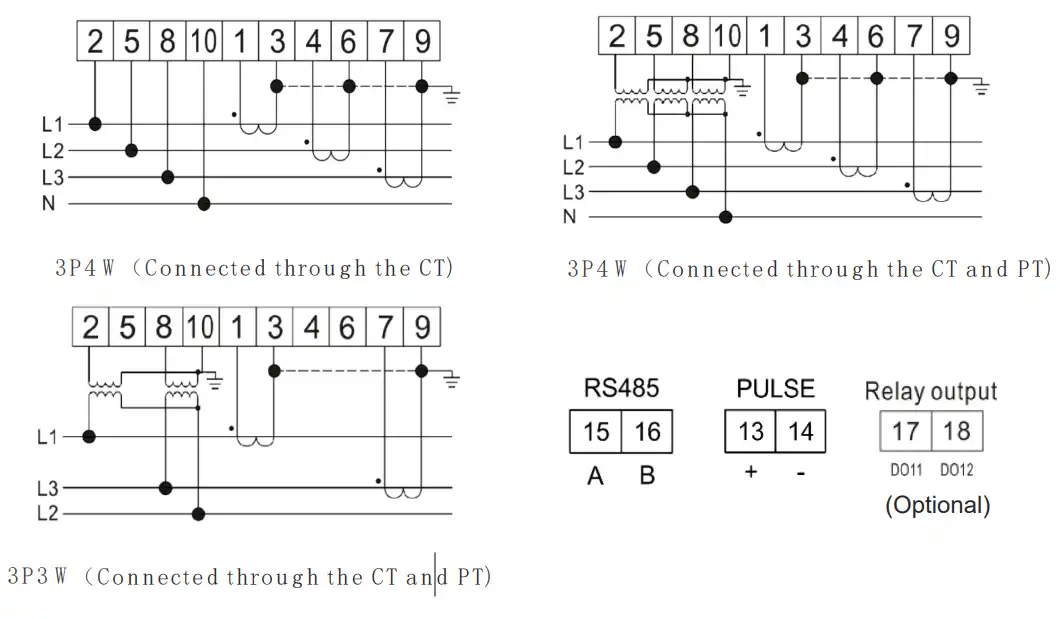

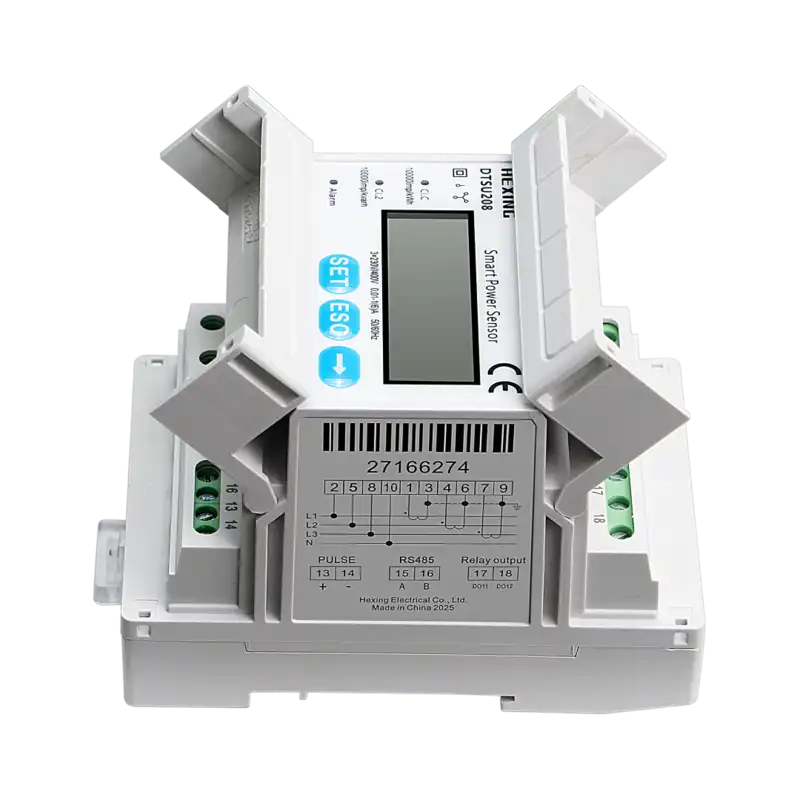

Connection Diagram
